This product combines the advantages of a three-way forklift and a pallet stacker, with a more competitive price, and can meet customers' needs for narrow channel stacking. This product has a load of 1000-1500kg and a lifting height of 3000-6000mm, and is mainly suitable for stacking operations in narrow channels.
mục số :
NSV10/15Sự chi trả :
T/Tnguồn gốc sản phẩm :
ChinaMàu sắc :
Green/Red/Yellow/CustomizedCảng giao dịch :
Shanghai/Ningbo/Qingdao,etc.thời gian dẫn :
20 daysĐặt hàng (MOQ) :

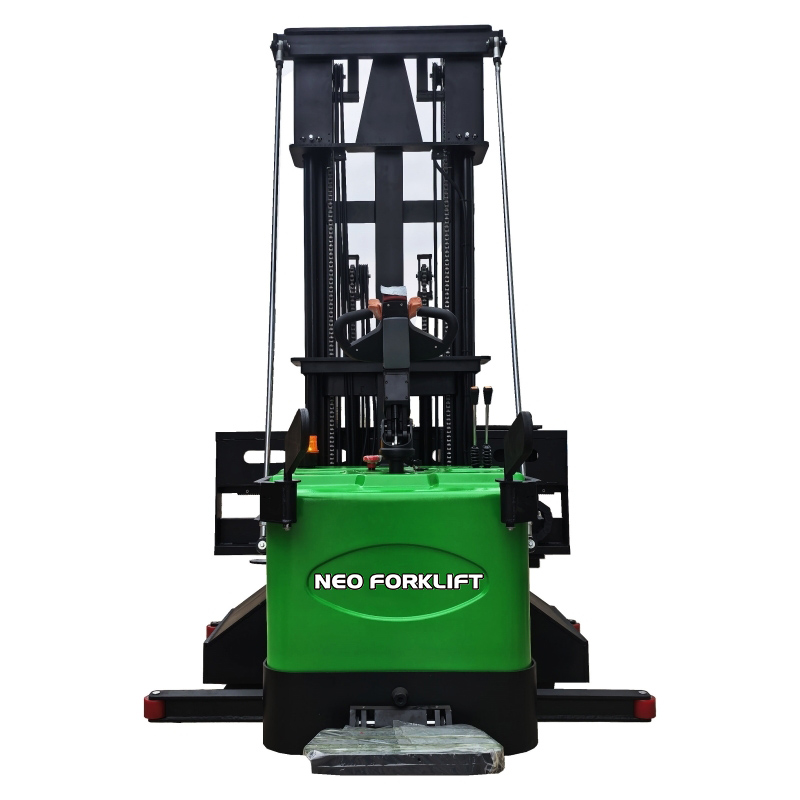

1 unitStand On Very Narrow Asile Statcker Truck
This product combines the advantages of a 3 way forklift and a pallet stacker, with a more competitive price, and can meet customers' needs for narrow channel stacking. The operator can stand on the pedal, the vehicle travels electrically, lifts electrically, the forklift mast has a forward movement function, and the fork can move left and right, so that the goods can be picked up and stacked without rotating the forklift. This product has a load of 1000-1500kg and a lifting height of 3000-6000mm, and is mainly suitable for stacking operations in narrow channels.
Details:
Features:
1. Rated load 1000-1500KG, lifting height up to 6m.
2. Fork length 1070mm, can be customized according to customer needs.
3. Fork lateral movement stroke ≥1100.
4. 2-way hydraulic valve (respectively control: up/down, fork left/right).
5. The fork can be installed in the left direction, and can be installed in the right direction after disassembly.
6. Forks can move right to left.
7. EPS curve automatic deceleration design: the larger the steering angle, the slower the speed, linear deceleration without setbacks, descent buffer design: cylinder with descent buffer valve.
8. Multiple braking mode safety guarantee: electromagnetic brake, regenerative brake, ramp anti-slip brake, emergency power-off automatic brake, emergency reverse brake, multiple safety guarantees.
Specification:
Model | NSV10/15 | |
Capacity | 1000-1500kg | |
Lifting height | H3 | 3000-6000mm |
Overall length, pedals retracted | L | 2350mm |
Overall width | B | 1500mm |
Mast lowered height | H1 | 2100-2600mm |
Mast extended height | H4 | 3560-6560mm |
Wheelbase | Y | 1090mm |
Fork outer width adjustable range | R | 210-680mm |
Min.fork height | S | ≤60 |
Min. turing raduis | Wa | 1313mm |
Max. turing raduis | Wa1 | 1500mm |
Min.turning channel width | Asts | 2800mm |
Motor capacity | 3kW | |
Battery voltage | 24V | |
Battery capacity | 210Ah |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
